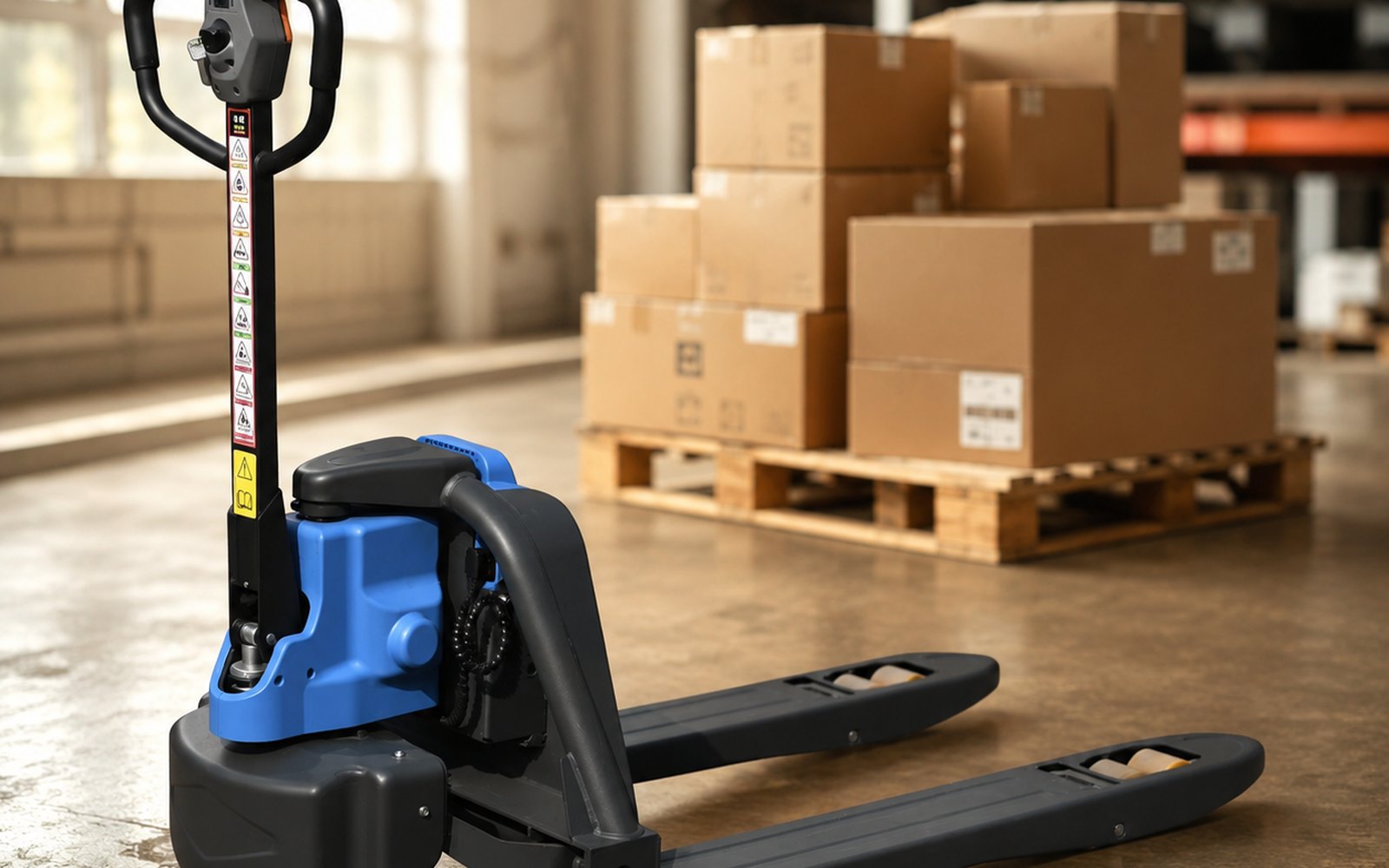

CBD20-ZLI Electric Pallet Jack 2T Walkie Lithium — in warehouse
Material Handling · Walkie Lithium
MODEL · CBD20-ZLI

Electric Pallet Jack

Battery-powered 2-ton pallet jack engineered for continuous warehouse operation. Effortless lifting, extended runtime — built to move, built to last.

Request a Quote → Back to Warehouse Supply
Capacity · Capacidad
2,000 kg
4,400 lb
Duty Cycle · Jornada
6–8 hr/day
continuous operation
Fast Charge · Carga Rápida
2–3 hrs
full charge · LiFePO₄
Warranty · Garantía
12 months
parts & labor
01 · Technical Specifications

Technical Specifications

Load Capacity
Capacidad de Carga
2,000 kg / 4,400 lb
Daily Operating Time
Tiempo de Operación Diaria
6 – 8 hr / day · 6–8 horas por día
Fast Charge to Full
Carga Rápida Completa
2 – 3 hours · full charge · 2–3 horas
Battery Type
Tipo de Batería
Lithium-ion LiFePO₄ · portable
Battery Voltage / Capacity
Voltaje / Capacidad de Batería
48 V / 20 Ah lithium-ion · fast charge
Drive Motor
Motor de Tracción
1.0 kW BLDC · brushless
Lift Motor
Motor de Elevación
0.8 kW DC motor
Fork Length
Longitud de Horquilla
1,220 mm 48.03 in
Fork Width (Overall)
Ancho Total de Horquilla
685 mm 26.97 in
Lift Height
Altura de Elevación
200 mm 7.87 in
Lowered Height
Altura Mínima
80 mm 3.15 in
Travel Speed (Loaded)
Velocidad (con Carga)
4.0 km/h 2.5 mph · laden
Gradeability
Pendiente Máxima
8% laden · 20% unladen
Turning Radius
Radio de Giro
1,395 mm 54.9 in
Net Weight
Peso Neto
130 kg 287 lb · w/ battery
Overall Dimensions (L×W×H)
Dimensiones Totales (L×A×H)
1,637×685×1,257 mm 64.4 × 27 × 49.4 in
Why Choose CBD20-ZLI

Rated for Daily Warehouse Use

Six engineering decisions that keep your operation moving — shift after shift.

01
4,400 lb Capacity4,400 lb de Capacidad
02
Li-ion · Fast ChargeLi-ion · Carga Rápida
03
Brushless BLDC MotorMotor BLDC sin Escobillas
04
Compact · Small TurnCompacto · Radio Pequeño
05
Emergency ReverseInversión de Emergencia
06
Maintenance FreeSin Mantenimiento

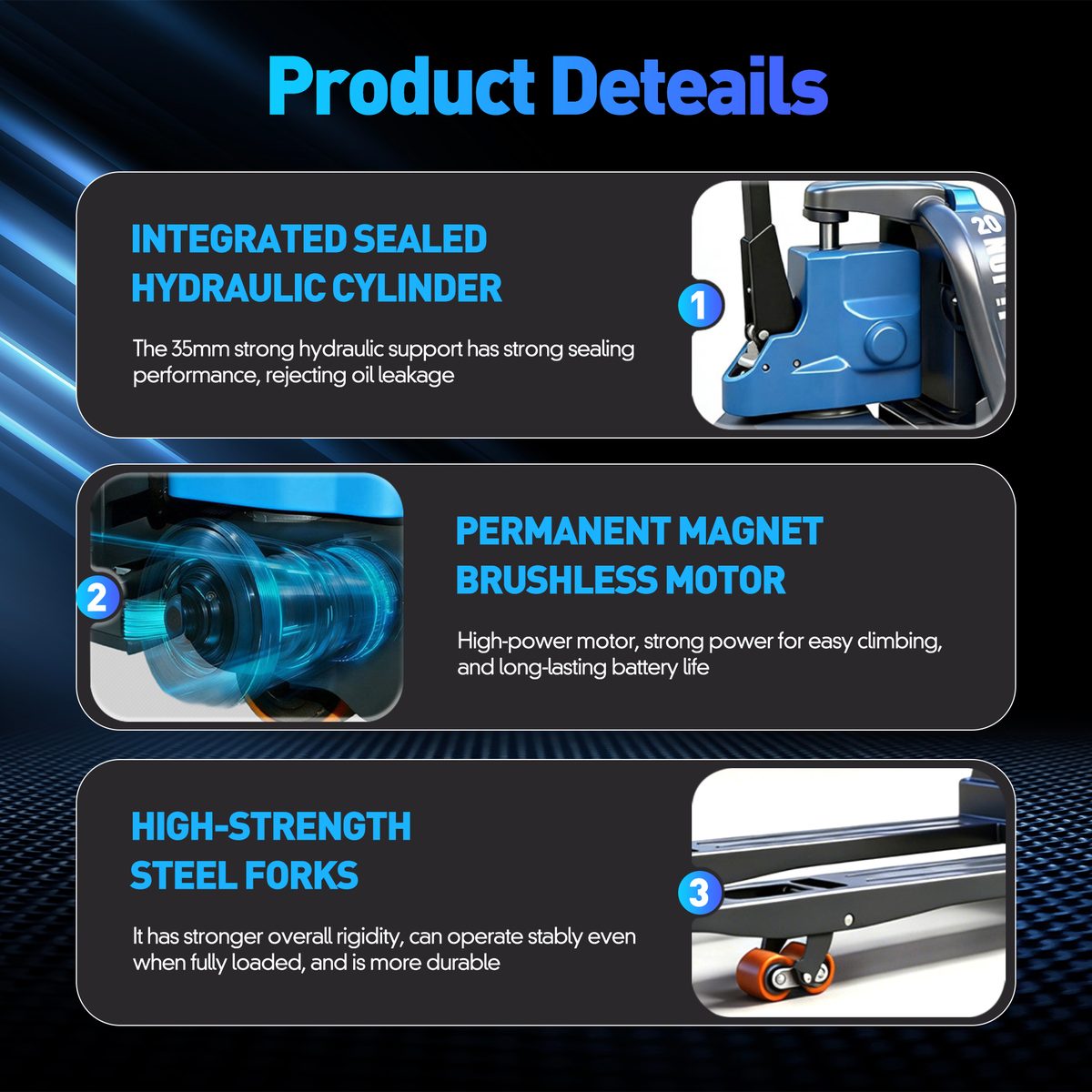

Engineering Highlights

Detalles de Ingeniería

Sealed Hydraulic Cylinder

Cilindro Hidráulico Sellado

35 mm high-strength hydraulic support with robust sealing — rejects oil leakage for long-term reliability.

Permanent Magnet BLDC Motor

Motor BLDC de Imán Permanente

High-power 1.0 kW brushless drive motor — strong climbing power, long battery life, zero maintenance.

High-Strength Steel Forks

Horquillas de Acero Reforzado

Superior structural rigidity operates stably under full load. Engineered for durability and longer service life.

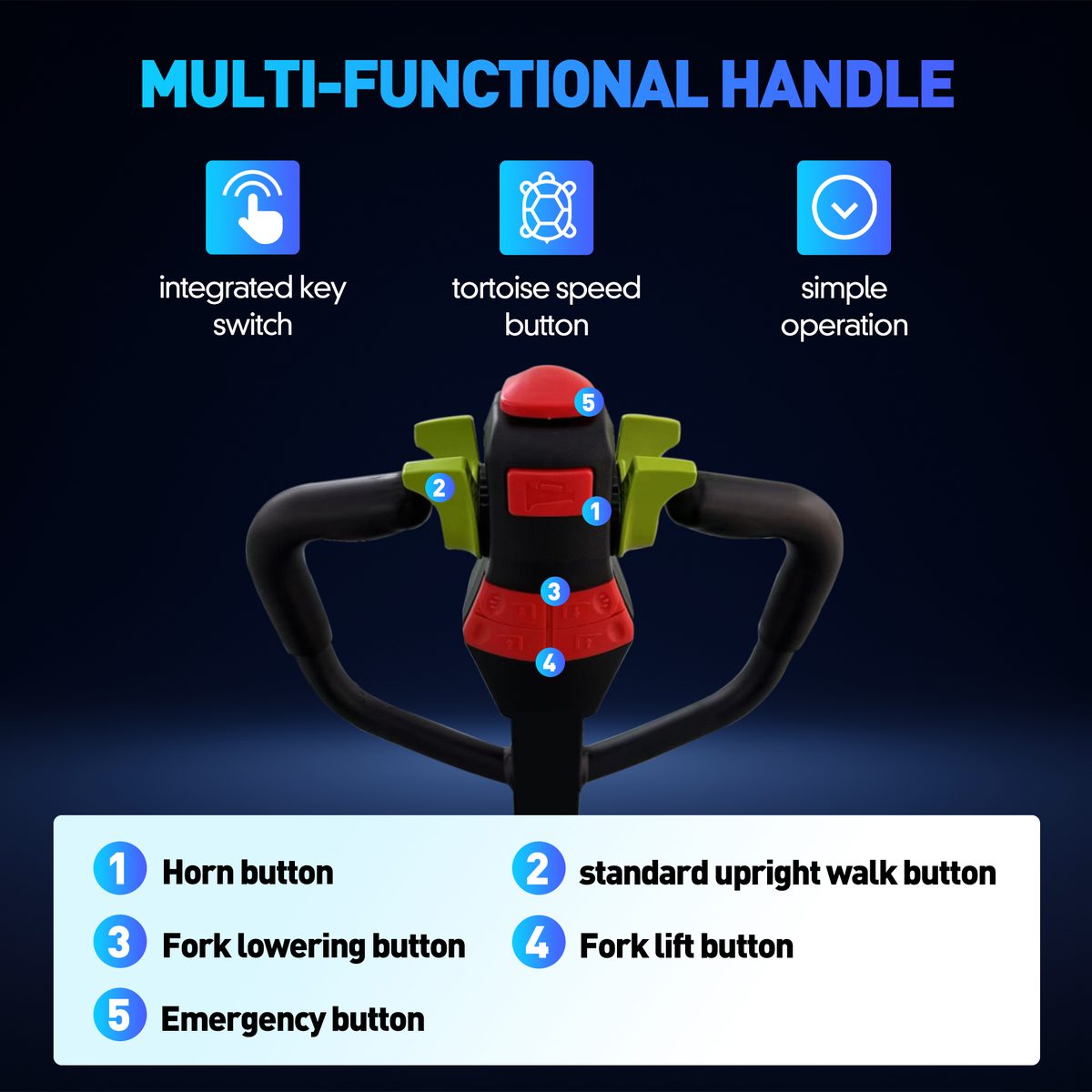

Multi-Function Handle

Mango Multifunción

  • 1
    Horn buttonBocina
  • 2
    Upright walk buttonCaminar erguido
  • 3
    Fork loweringBajar horquillas
  • 4
    Fork liftElevar horquillas
  • 5
    Emergency stopParada de emergencia

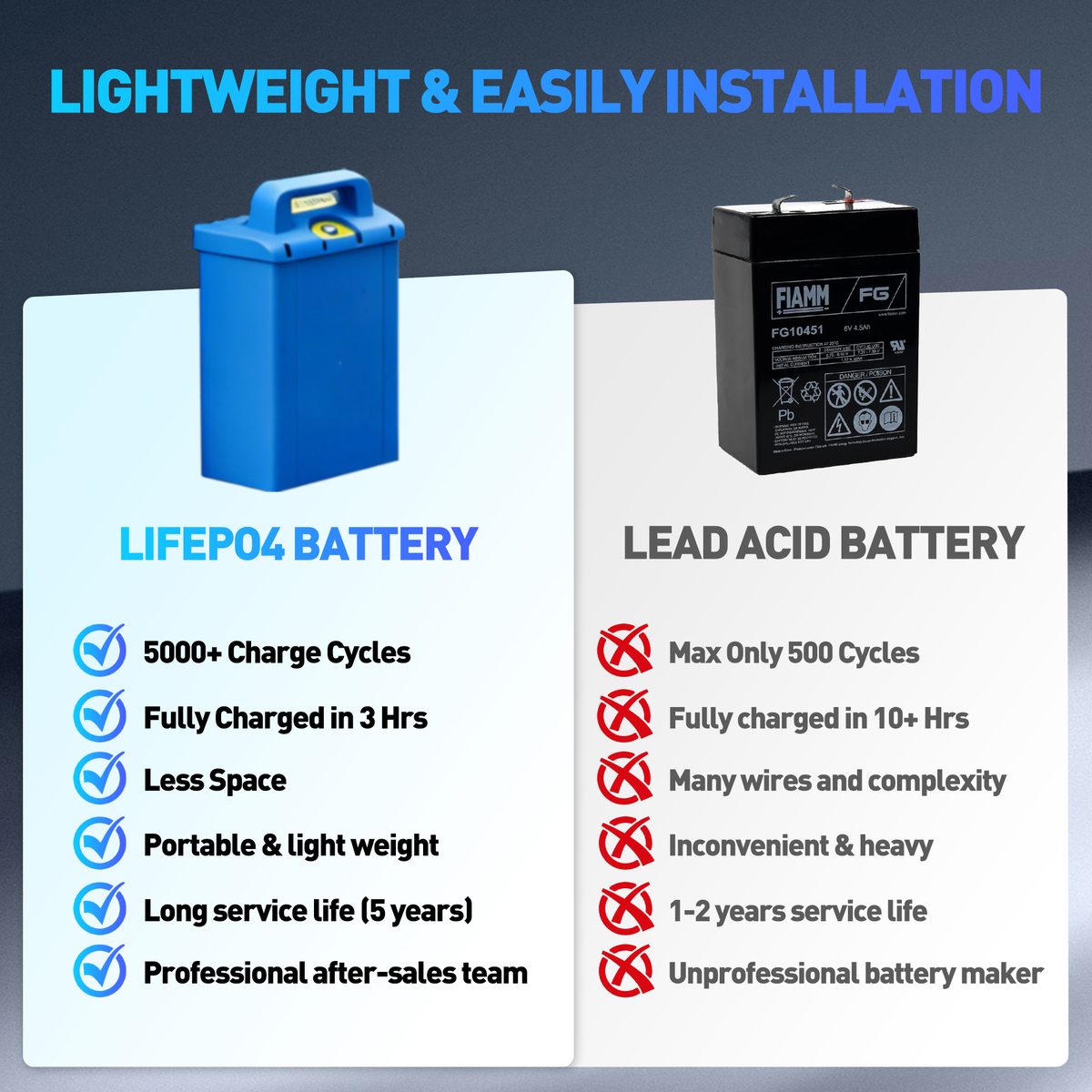

LiFePO₄ vs Lead-Acid

LiFePO₄ vs Plomo-Ácido

LiFePO₄ (Ours)
LiFePO₄ (Nuestro)
  • ✓ 5,000+ charge cycles
  • ✓ Fully charged · 2–3 hrs
  • ✓ Lightweight & portable
  • ✓ 5-year service life
Lead-Acid
Plomo-Ácido
  • ✗ Max 500 cycles
  • ✗ Charge time 10+ hrs
  • ✗ Heavy & bulky
  • ✗ 1–2 year life

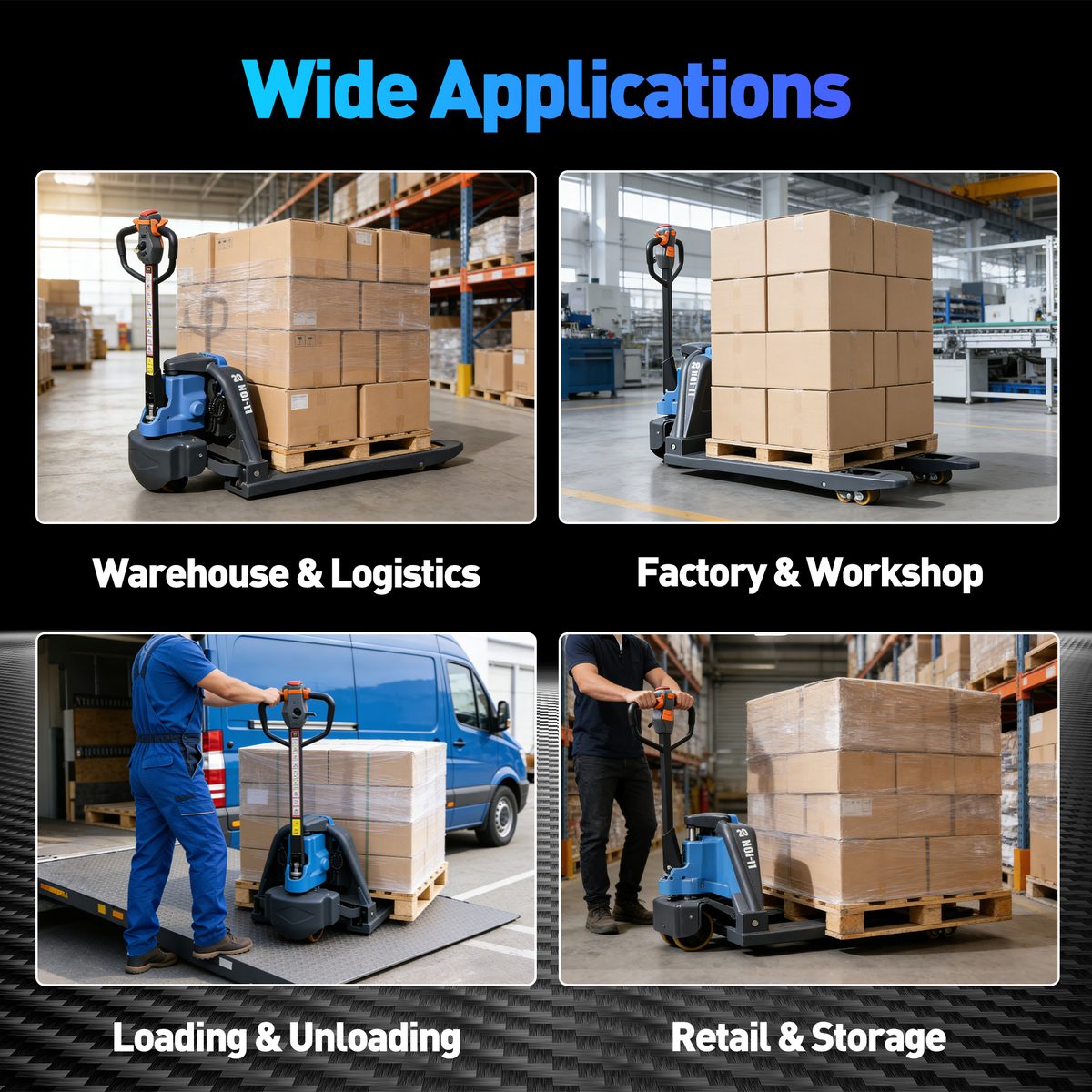

Wide Applications

Aplicaciones Versátiles

Warehouse & LogisticsAlmacén y Logística
Factory & WorkshopFábrica y Taller
Loading & UnloadingCarga y Descarga
Retail & StorageComercio y Almacenamiento
Product Gallery

Product Brochure

Detailed product features and specifications in visual form.

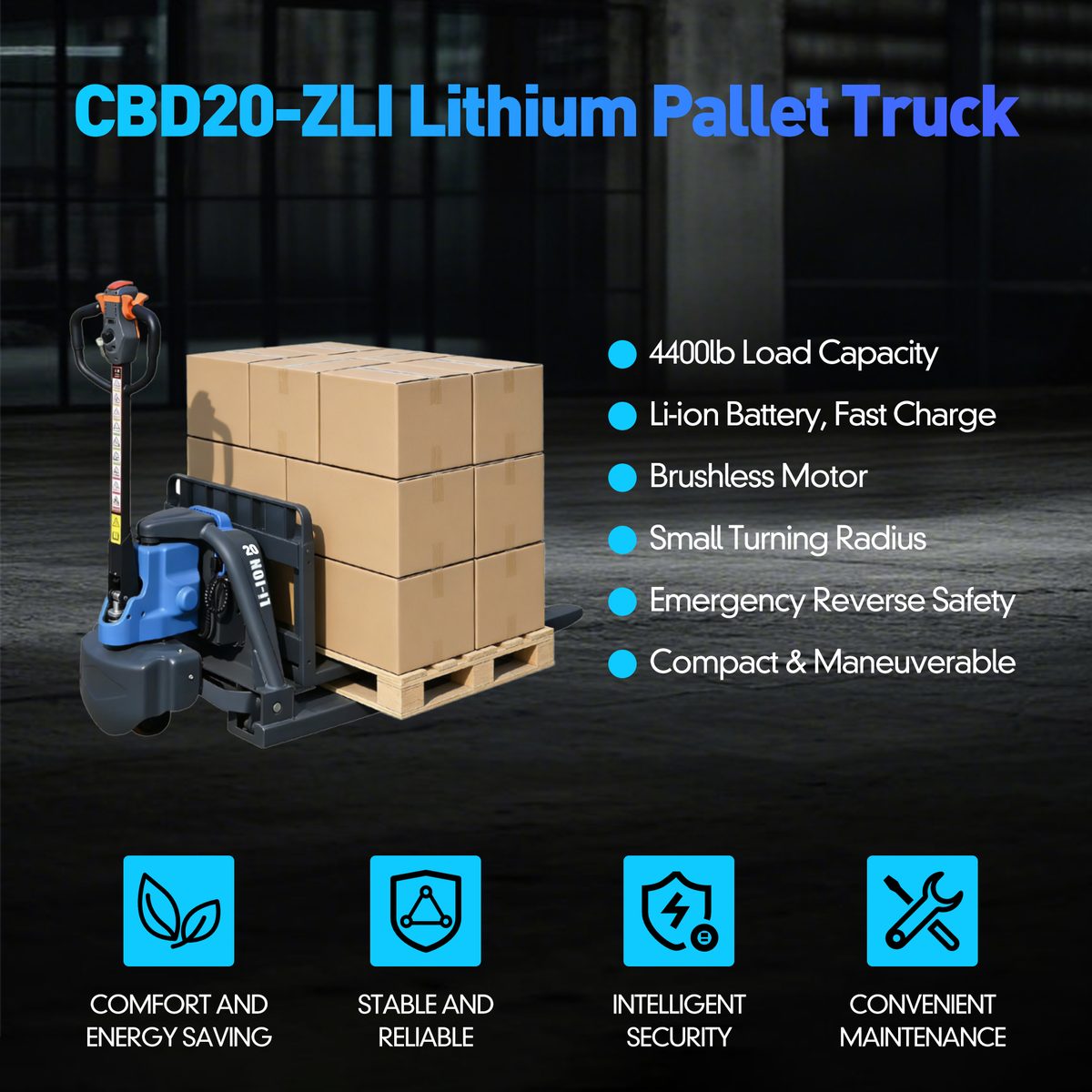

CBD20-ZLI Lithium Pallet Truck Feature Overview ⊕
Feature OverviewCBD20-ZLI Lithium Pallet Truck · 产品特点总览

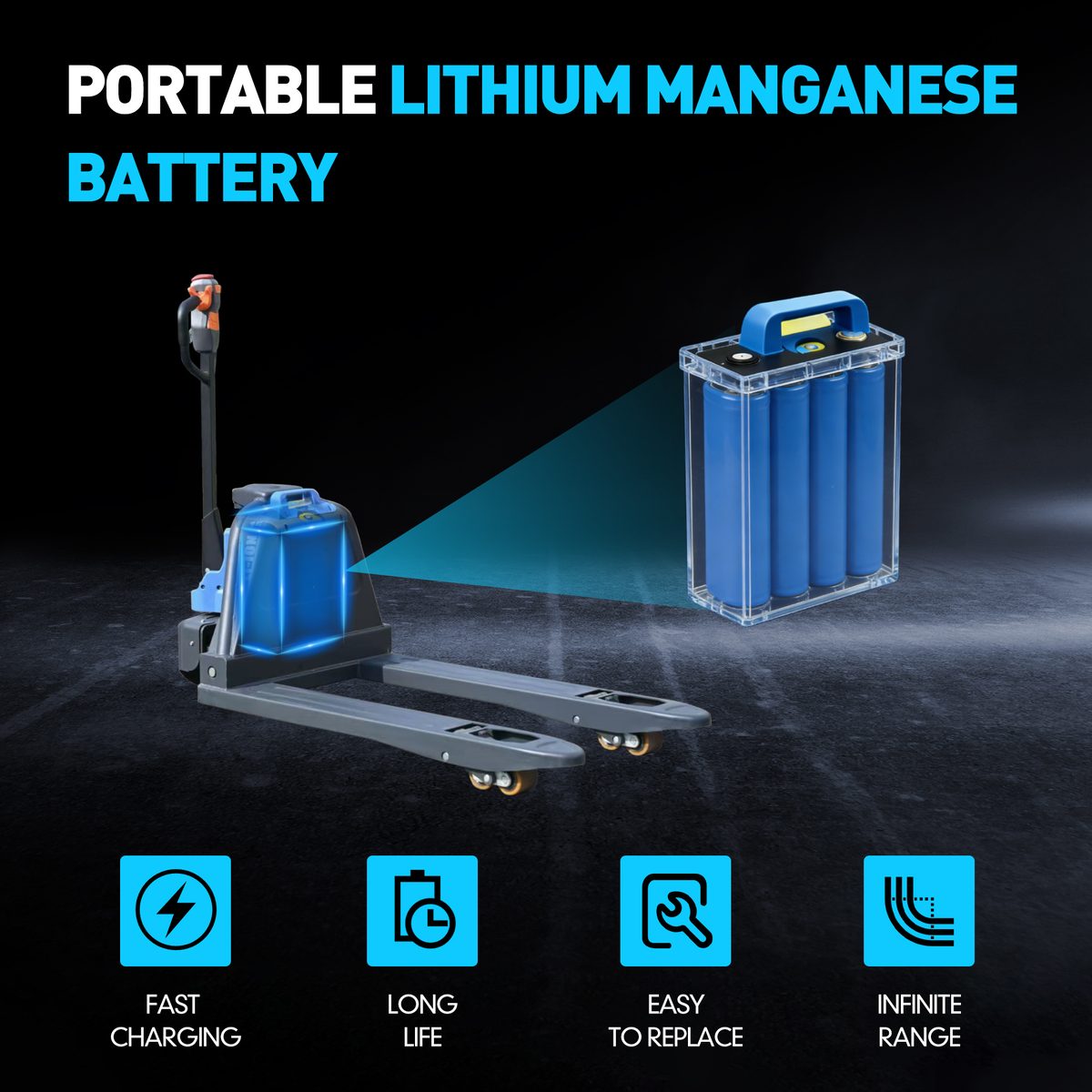

 Portable Lithium Manganese Battery ⊕
Portable Lithium BatteryFast charge · long life · easy replace · 便携锂电池
 LiFePO4 vs Lead Acid Battery Comparison ⊕
LiFePO₄ vs Lead-AcidLightweight & easy installation · 电池对比
 Multi-Functional Handle Controls ⊕
Multi-Functional Handle5 integrated controls · 多功能操控手柄
 Engineering Product Details ⊕
Engineering DetailsHydraulic · BLDC · Steel forks · 工程细节
 Wide Applications — Warehouse, Factory, Loading, Retail ⊕
Wide ApplicationsWarehouse · Factory · Loading · Retail · 应用场景

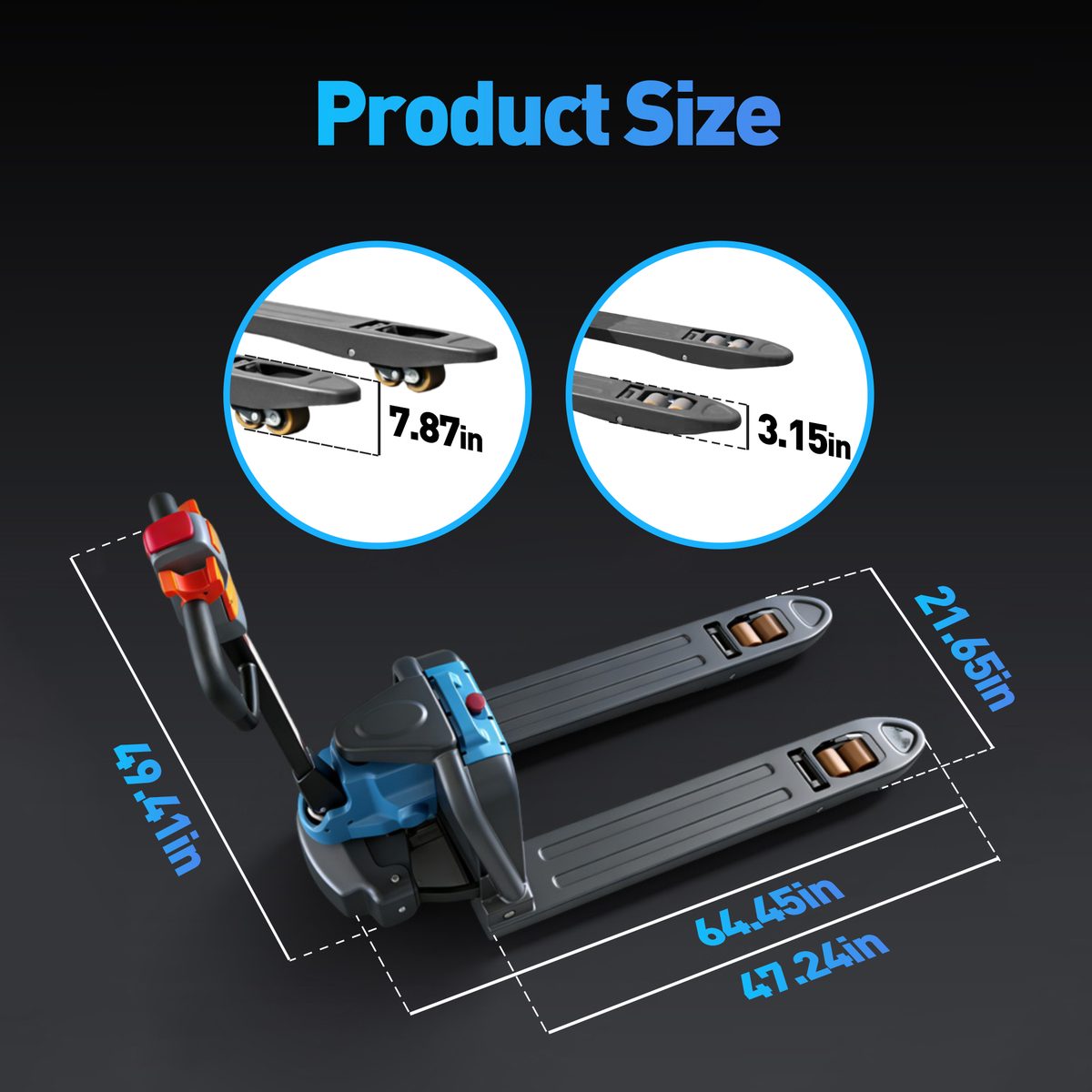

 Product Size and Dimensions ⊕
Product Dimensions49.41 × 21.65 in overall · 产品尺寸

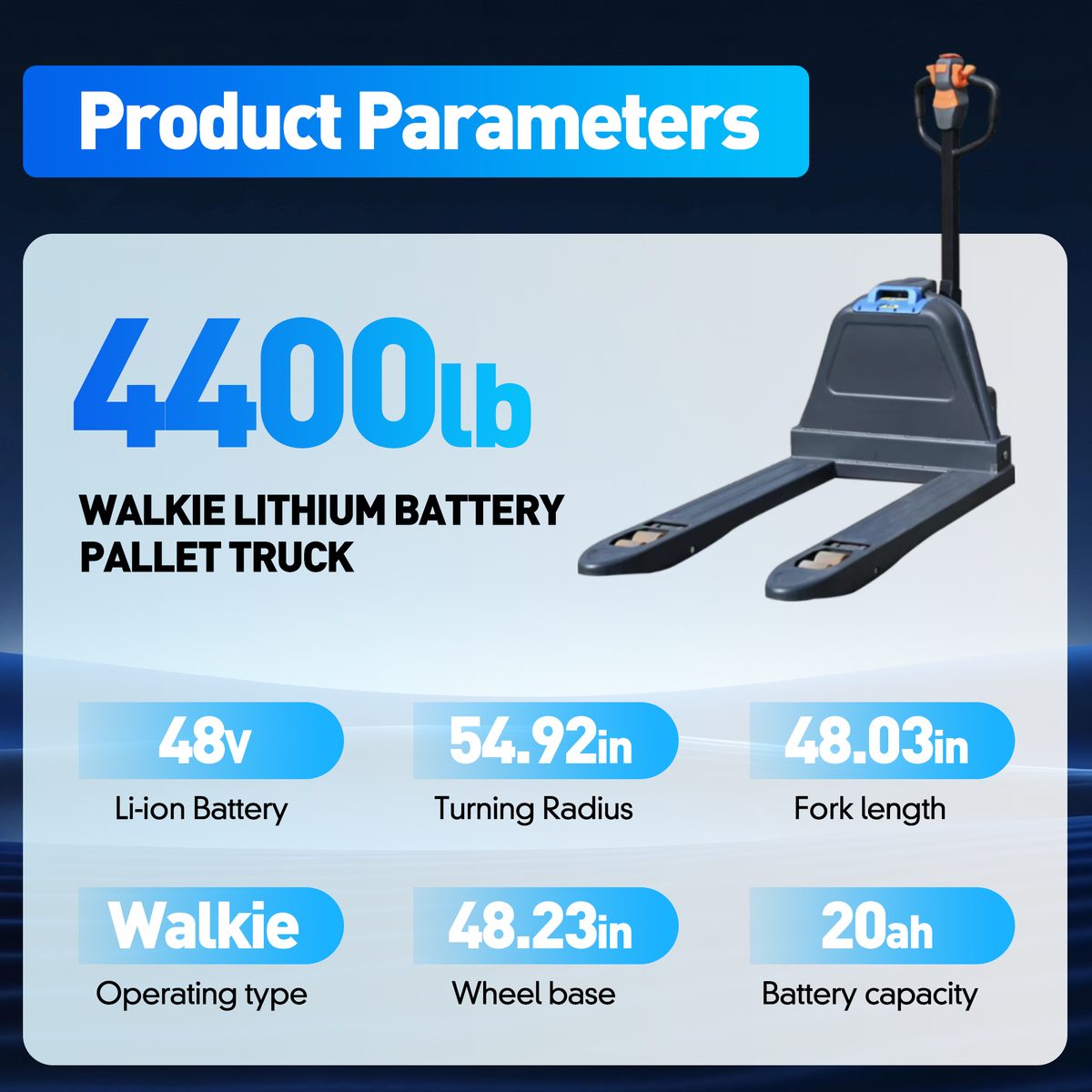

 Product Parameters Summary ⊕
Product Parameters4,400 lb · 48V · Walkie · 20Ah · 参数规格
02 · Sales Pricing

Precios de Venta

Retail · Per Unit
Precio Minorista · Por Unidad
$1,450/ unit
BEST VALUE
Wholesale
Precio Mayorista
$1,350/ unit
MOQ · Pedido Mínimo3+ UNITS
03 · Rental Pricing

Rental Plans

DailyDiario
DAY
$99/ day
minimum · 1 daymínimo · 1 día
WeeklySemanal
WK
$255/ week
7-day rentalalquiler · 7 días
MonthlyMensual
MO
$569/ month
flexible · no contractflexible · sin contrato
Long-TermLargo Plazo · 1 año
01 YR
$439/ mo · unit
$399 per unit · 3+ units$399/unidad para 3+ unidades
Remarks · Notas

Ready to order?

Ready to ship from Houston, TX. Send specs, quantity, and delivery region — we'll get back to you quickly.

Request a Quote →
